Garaventa Xpress II Stair Lift

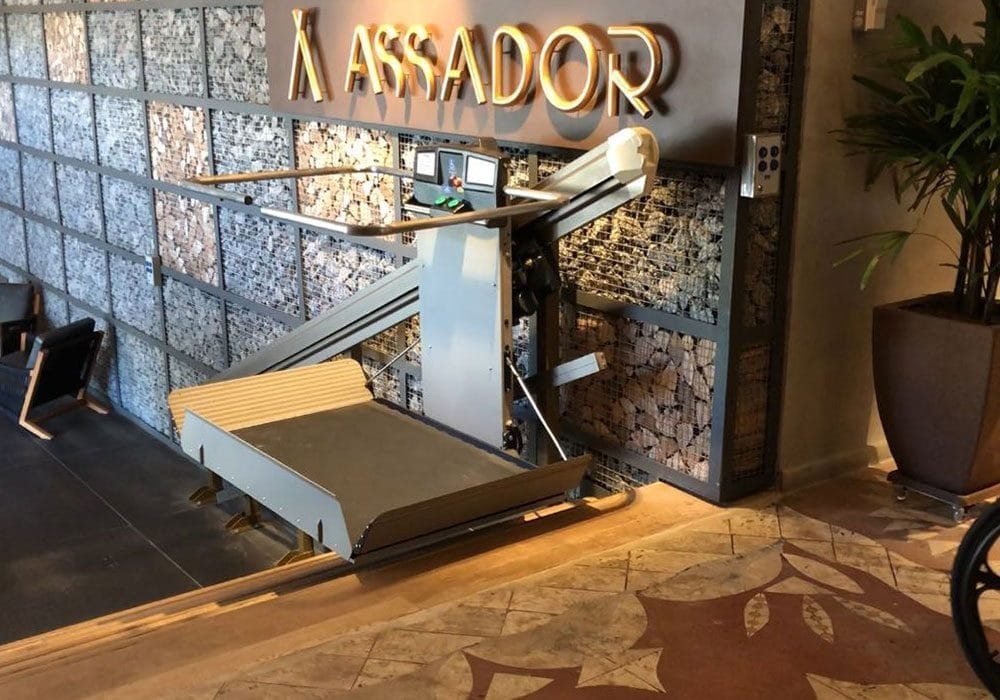

The Garaventa lift Xpress II inclined platform wheelchair lift is designed to provide economical access between two landings.
The platform travels on two rails secured directly to the wall or to support towers and is propelled by a carriage-mounted rack and pinion drive system. When the platform is not in use it is folded, taking up minimal space on the stairway.
The stairlift is easy to operate with controls on the armrest and two radio frequency remote controls. Based on computer-aided design software and photo measuring, the rails are custom-bent to your exact specifications. This is all done with industry-leading lead times. Choose from different seat and rail colors to suit your taste and make the lift perfectly into your home.
• 800 x 1250mm ADA compliant platform
• Choice of three standard platform sizes
• Passenger grab rail
• Under platform obstruction sensing plate and bi-directional ramp sensors
• Emergency manual lowering and folding system
• Ready lamp safety indicator
• Power-fold platform and ramps
• Keyed Call Stations
• Keyless platform for easier operation
• Large illuminated platform directional buttons and an emergency stop button
• Powered platform safety armsStandard Platform Sizes 800mm x 1250mm (31 1/2” x 49 1/4”) 800mm x 1000mm (31 1/2” x 39 3/8”) 750mm x 900mm (29 1/2” x 35 1/2”) Optional Platform Sizes 675mm x 1000mm (26 1/2” x 39 3/8”) 725mm x 1000mm (28 1/2” x 39 3/8”) Rated Load 250 kg (550 lbs) Speed Up: 4m (13 ft) per minute, Down: 4.9 m (16 ft.) per minute Operating Controls Continuous pressure switches, 24 VDC. Drive System Motor 0 . 75 H . P. Power Requirements 208-240 VAC, 50/60 HZ single phase on a dedicated (North America = 20 amp, International = 15 amp) circuit. Power Transmission Rack & pinion Rail System Champagne anodized aluminum extrusion with integrally mounted zinc plated gear rack.
