Vertical Wheelchair Lift
Safe, code-compliant vertical platform lift — full wheelchair access between floors or level changes
★★★★★ 4.8 152 Verified Reviews
Why Choose the Vertical Wheelchair Lift?
When a staircase is not the issue — but a level change, a raised entrance, a porch, a stage, or a short rise between floors is — the Vertical Wheelchair Lift is the right solution. It moves straight up and down like a mini elevator, giving full wheelchair access across homes, offices, schools, places of worship, and public buildings, without the cost or space needed for a full home lift.
Straight Vertical Travel — No Staircase Needed
Unlike stairlifts, the Vertical Wheelchair Lift does not need a staircase at all. It moves the platform straight up and down — ideal for raised entrances, porches, stages, split-level homes, and short floor-to-floor rises.
High Weight Capacity — Up to 315 kg
Rated for up to 315 kg, comfortably handling the combined weight of a motorised wheelchair, user, and any companion or equipment.
Indoor & Outdoor Models Available

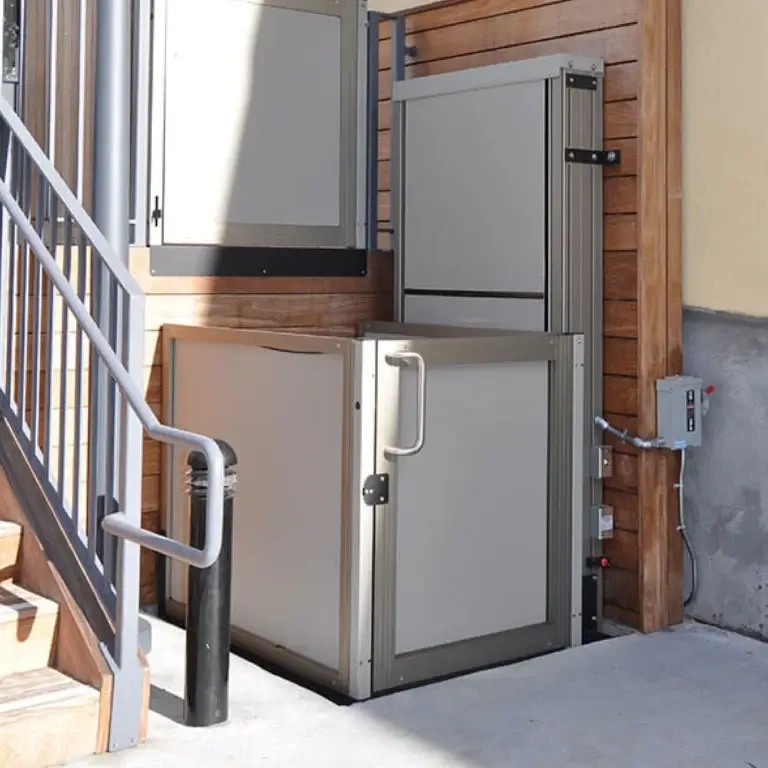

Available in both indoor and fully weatherproof outdoor configurations — suitable for entrance porches, garden level changes, and external building access exposed to rain and sun.
Code-Compliant for Public Buildings
Designed to meet accessibility standards required for schools, offices, places of worship, clinics, and public buildings — making spaces legally and practically accessible for wheelchair users.
Battery Backup System
Works even during power cuts. Fully charged batteries allow the lift to safely complete its journey — essential for Indian conditions with frequent power interruptions.
Self-Supporting — Minimal Civil Work
In most cases, the Vertical Wheelchair Lift does not require a pit or shaft — it can be installed with a small ramp-up base or minimal groundwork, keeping installation fast and non-disruptive.
Automatic or Manual Gate Options
Choose from manual swing gates or fully automatic sliding gates at each level — both designed with safety interlocks so the lift only operates when gates are properly closed.
Smooth, Stable Platform
Generous platform size comfortably fits a wheelchair, motorised scooter, or wheelchair with a companion standing alongside — stable and steady throughout the rise.
Simple Push-Button Operation
Operated with simple push-button controls at each level and on the platform — easy for the user, a family member, or facility staff to operate independently.
Weather-Sealed for Outdoor Use
The outdoor model is fully weather-sealed — electrical components, motor, and controls are protected from rain, dust, and humidity for long-term reliable performance.
Technical Specifications
Full details to help you make the right choice
| Specification | Details |
|---|---|
| Maximum Load Capacity | 315 kg (wheelchair + user + companion) |
| Travel Height | Up to 3 metres (standard); higher on request |
| Travel Speed | 0.10 m/s (smooth & controlled) |
| Platform Size | Approx 900 mm × 1400 mm (standard) |
| Power Supply | 230V AC / 50Hz (Indian standard) |
| Battery Backup | Full charge = multiple trips on backup alone |
| Pit Required | No — minimal ramp-up base in most cases |
| Installation Type | Indoor or weatherproof outdoor model |
| Drive System | Hydraulic or screw-driven (heavy-duty) |
| Gate Options | Manual swing gate or automatic sliding gate |
| Safety Features | Gate safety interlocks, emergency stop, overload sensor, obstruction sensor, key lock |
| Control Options | Push-button panel at each level + platform controls |
| Suitable For | Homes, offices, schools, places of worship, clinics, public buildings |
| Warranty | 2 years parts & labour, AMC available |
| Installation Time | 3–4 days |
| Certifications | CE, ISO 9001:2015, BIS approved |
How to Get Your Vertical Wheelchair Lift
Simple 4-step process — from enquiry to using your lift
Free Consultation
Call or WhatsApp us. Our expert understands the level change, available space, and whether you need an indoor or outdoor model.
Site Survey
Our engineer visits your home or building, measures the rise height and available space, and recommends the right platform size and configuration.
Custom Installation
The lift is installed with minimal civil work in most cases. Installation typically takes 3 to 4 days depending on travel height and site conditions.
Demo & Support
We train the user, family, or facility staff on safe operation and provide 24/7 after-sales support. Annual AMC available.
Customer Reviews
Real experiences from families across India
Frequently Asked Questions
Everything you want to know before buying
A Vertical Wheelchair Lift moves a platform straight up and down, like a mini elevator, rather than travelling along a staircase rail like a stairlift. It is the right solution when the barrier is a raised entrance, porch, stage, or a short floor-to-floor rise rather than a full staircase.
No. In most cases, the Vertical Wheelchair Lift does not require a pit or a full shaft. It can be installed with a small ramp-up base and minimal groundwork, making installation much faster and less disruptive than a traditional elevator.
Yes. The Vertical Wheelchair Lift is available in a fully weatherproof outdoor model, suitable for porches, garden level changes, and external building entrances exposed to rain, dust, and sun.
The standard configuration travels up to 3 metres, which covers most level changes, raised entrances, and floor-to-floor rises. Higher travel heights are available on request — our engineer will assess this during the free site survey.
Yes. The Vertical Wheelchair Lift is designed to meet accessibility standards required for public and institutional buildings, making it a popular choice for schools, offices, clinics, and places of worship across India.
Prices start from approximately ₹4,80,000 including installation. Final cost depends on travel height, platform size, indoor or outdoor model, and gate type chosen. Contact Vingrace for a free, no-obligation quote and site survey.
The Vertical Wheelchair Lift has a battery backup system that allows it to safely complete its current journey even during a power interruption — ensuring no one is ever left stranded mid-rise.
Yes, we recommend annual servicing to ensure safe and reliable performance. Vingrace offers an AMC (Annual Maintenance Contract) with priority service calls and regular preventive check-ups.
Vingrace is a certified authorised dealer in India. We provide free site surveys, professional installation across India, a 2-year warranty on all parts and labour, and lifetime AMC support. Trusted by families, schools, clinics, and places of worship across Delhi, Mumbai, Bengaluru, Hyderabad, Pune, Chennai, Kochi, Jaipur, and beyond.
